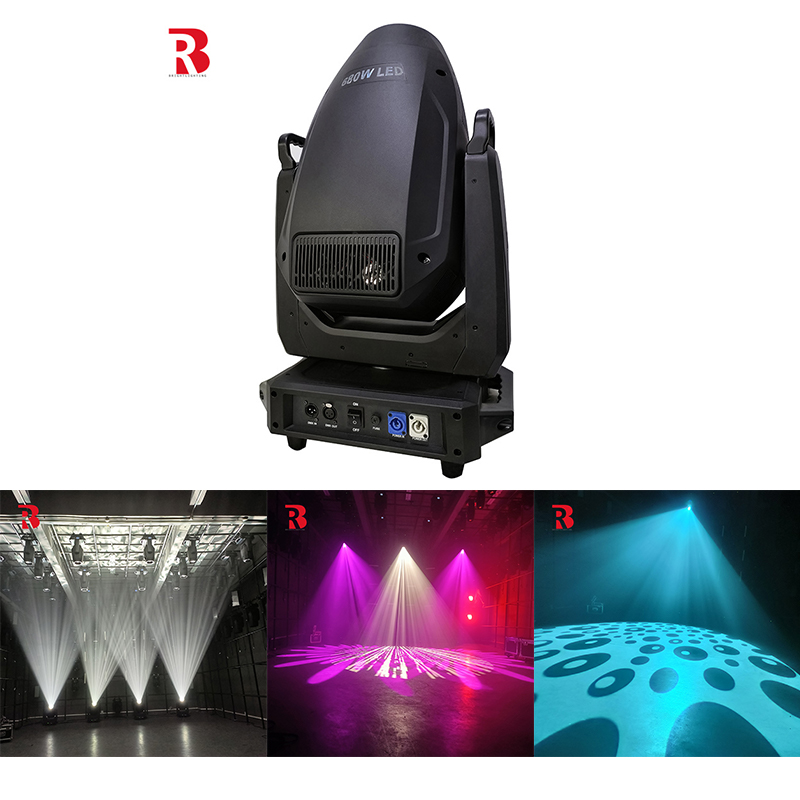

Professional CMY CTO Lighting Mini 680W LED BSWF MOVING PROFILE Stage Light

Name: Professional CMY CTO Lighting Mini 680W LED BSWF MOVING PROFILE Stage Light
Brand: Bright lighting
Price: 1 USD

Brand Name : Bright lighting

Model Number : BR-Mini680

Certification : CE ISO9000

Place of Origin : China

MOQ : 1 Sets

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 3000PCS per month

Delivery Time : 7-15days

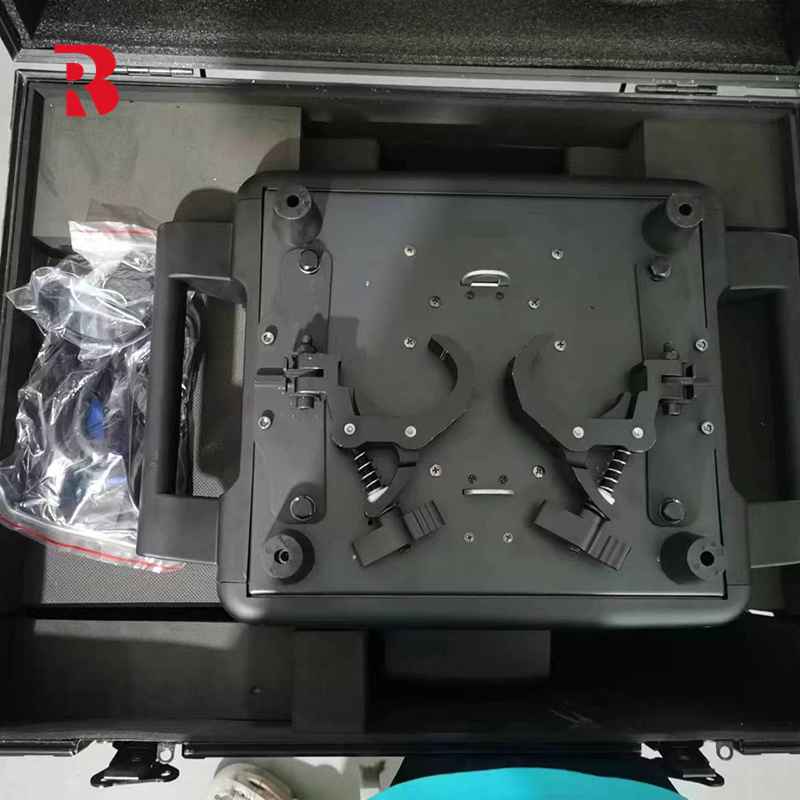

Packaging Details : Carton Flightcase

Input voltage : AC100-240V, 50/60Hz

Rated power : 950W

Light source : 600W LED module

LED life : 20,000 hours

Color temperature : 6500K

Caliber : 130mm Frontal lens for greater performance

Color rendering index : Standard mode Ra>75, high CRI mode Ra>90

Luminous flux : 24000LM

Contact Now

Professional CMY-CTO Lighting Mini680W LED BSWF MOVING PROFILE Stage Light

Specifications:

Input voltage:	AC100-240V, 50/60Hz
Rated power:	950W
Light source:	600W LED module
LED life:	20,000 hours
Color temperature:	6500K
Caliber:	130mm Frontal lens for greater performance
Color rendering index:	Standard mode Ra>75, high CRI mode Ra>90
Luminous flux:	24000LM
Signal interface:	three-pin XLR (five-pin XLR optional)
Control mode:	DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode:	41CHs
Display system:	2.8-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color:	6 colors + open position
Color mixing system:	independent CMY color mixing system
Color temperature adjustment:	independent CTO 2500K-7000K linear adjustment
Prisms:	Rotating 4-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel:	dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel:	7 plug-in fixed gobos with an outer Rotating gobo Wheel: 8 gobos (pluggable),
Framing system:	4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system:	0~100% linear atomization
Iris system:	6%~100% smooth adjustment
Beam Aperture:	5°~50° fast motorized linear zoom
Dimming system:	0-100% linear adjustment
Strobe system:	the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan:	540° (16 bit precision scanning)
Tilt:	270° (16 bit precision scanning)
Pan/Tilt:	Five-phase motor with magnetic encoding positioning function
Protection rate:	IP20
Working environment:	0-45℃
Product net weight:	30KG

Additional details:

Technical Principles

Mini680W LEDBSWF MOVING PROFILE uses advanced LED technology and a variety of optical components to achieve precise beam shape, color and effect adjustment through DMX512, RDM and other control methods.

Application:

1:Concerts and performance venues: Mini680W LED BSWF MOVING PROFILE can be used in concerts, concerts and other performances to enhance the visual impact through its colorful lighting effects, create a spectacular stage atmosphere and enhance the audience's viewing experience.

2:Theater and stage play performances: In large theaters and stage play performances, this lamp can provide a variety of lighting effects for the stage, including color mixing, dynamic effects wheels and precise beam adjustment to match the plots of different plays and increase dramatic tension.

Service:

Provide after-sales service

display:

Professional CMY CTO Lighting Mini 680W LED BSWF MOVING PROFILE Stage Light
